Name: BetaPort-P Digital Pressure Modules (Open Box)
SKU: BetaPort-P
Availability: InStock

BetaPort-P Digital Pressure Modules (Open Box)

BetaPort-P Digital Pressure Module is NO LONGER AVAILABLE. 1000 PSI range available. Calibration Certificate extra Contact us to discuss options [contact-form-7 id="25621" title="Quote from Product Page Direct"]

Gauge Only (By Range)

Clear

Description

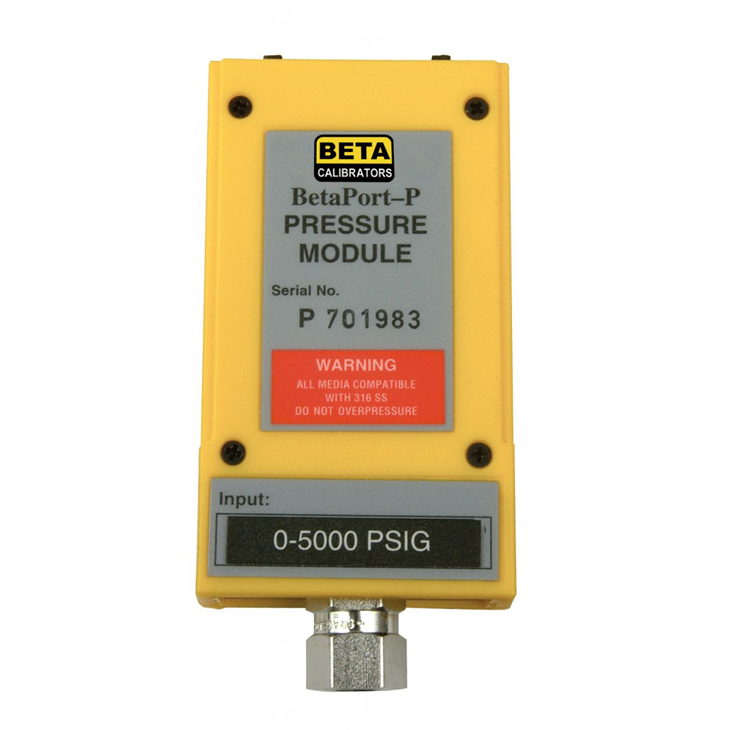

BetaPort-P Digital Pressure Modules

Easily expand your pressure measurement capability with a BPPA-100A Pressure Module Adapter and BetaPort-P Pressure Module

Martel Electronics offers 27 standard pressure modules, covering gauge, vacuum, absolute, compound, and differential measurements. All modules are directly compatible with the BetaGauge II. With the Model BPPA-100 Pressure Module Adapter, all modules (with the exception of the DC measurement model) are fully compatible with the Martel DMC-1410, MC-1210, and MC-1010 Multi-Function Calibrators, the BetaGauge 330, 321A, 311A, and 301 Pressure Calibrators, the Martel Electronics 3001 Laboratory/Bench Standard.Pressure ranges may be displayed in any of 15 user selectable units. Water density correction factors of 4°C, 20°C, or 60°F can be selected for either water column unit. The choice of pressure unit may be restricted by limitations on resolution of the instrument display of the particular calibrator the module is used with. For optimum mechanical strength, external pressure connection is made by a 1/8″ FNPT 316SS connector welded to a stainless steel metal plate.

Specifications
